Sorry but the product is no longer in our offer.

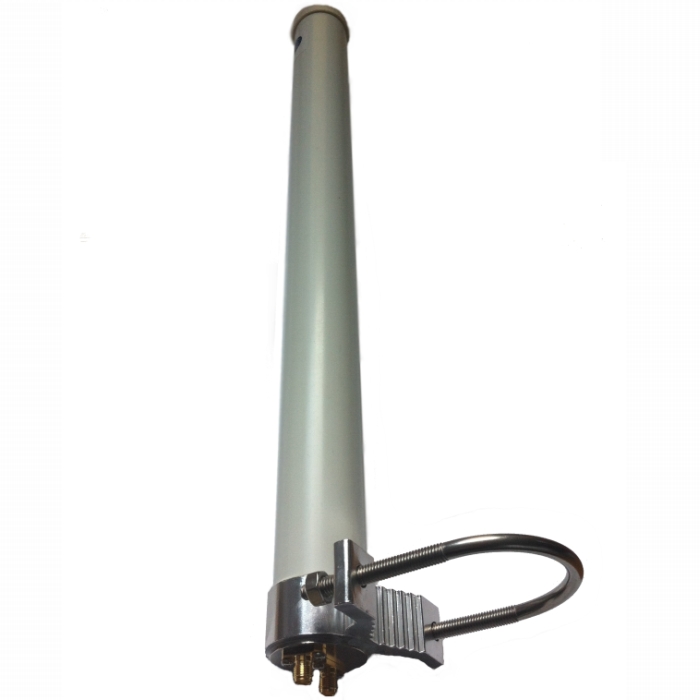

MaxLink 2.4 GHz 7dBi MIMO OMNI, 2x SMA female

02-VS-M07-D
Omnidirectional dual/MIMO outdoor antenna 2×2 with the gain of 7 dBi. Very light antenna for acces points working in 2.4GHz range with the use of the MIMO technology. The antenna has 2 SMA Female connectors. The mounting kit is included in the package.... More information

Product description

Omnidirectional dual/MIMO outdoor antenna 2×2 with the gain of 7 dBi. Very light antenna for acces points working in 2.4GHz range with the use of the MIMO technology. The antenna has 2 SMA Female connectors. The mounting kit is included in the package.

Specifications

Wireless features

VSWR:< 1,5
MIMO, SISO:2 x 2
Polarization:VH
Wireless frequency:2.4 GHz
Elevation beam width (-6dB) [°]:24
Azimuth beam width (-6dB) [°]:360
Antenna type:Omnidirectional
Antenna gain [dBi]:7

Connectors and Interfaces

RF connectors:(2) SMA female

Physical characteristics

Designed for mast diameter [mm]:28 up to 50
Wind load [km/h]:170
Purpose:Outdoor
Material:UV stabilized plastic
Weight [kg]:0,2
Depth [mm]:33
Width [mm]:
Height [mm]:405

Download

Datasheet
